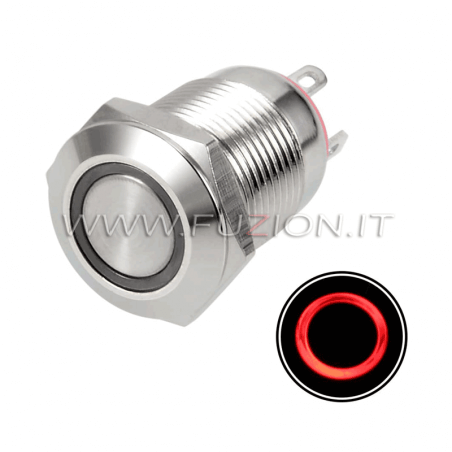

ROUND STAINLESS STEEL ON OFF PUSHBUTTON SWITCH 18mm. RED RING FUSION
- On/Off button switch with Red ring
- 12/24Volt
- Packaging: 1 Pieces
- Warranty 2 Year
CIRCULAR PULSANT ON OFF 18mm, illuminated circular designed for panel mounting. With the switch drive option with lock or momentary mechanism, circular switches are suitable for a wide range of applications. The installation is easy, after a drilling with a diameter of 16mm., the switches simply graft into the panel or equipment and are securely blocked.
Features:
- Body: Niched brass
- Material button: Stainless steel
- Contacts Silver
- Report ON: Bright red ring
- Momentary type: restoreable [premere e tenere premuto ON, rilasciare OFF]
- Switch rating: 5 A / 250 V CA.
- Contact resistance: ≤50 mΩ
- Insulation resistance: ≥1000mΩ
- Water resistance, ice powder: IP67 - IP68
- Dielectric intensity: 2000VAC
- Operating temperature: -20 °C ~ + 55 °C
- Panel Thickness: 1 - 15 mm
- Couple dice: 5-14 NUMM
- Operating pressure: about 4 N.
- Operating stroke: about 3 mm
- Type of operation: momentary
- Head shape: round flat hood
- Diameter: 18mm.
- Hole diameter: 16mm.
Applications for button switches:
Designed to withstand physical attack and is suitable for any application that requires resistance over the panel to water and dust penetration. Some of the most common applications are:
• Automotive, Parking Sensors, Xenon, Led
• Appliances, dryers, washing machines, refrigerators and freezers
• Conditioners, fans and heating products
• Appliances, coffee machines, kettles
• Electric panels, Safety equipment
Content in the package:
N°1 Switch button
Warranty: 2 Years
